An Interesting History of Decorative Concrete

When looking a little deeper into the history of stamped concrete, it is worth outlining the history of concrete itself. This material has been known since antiquity.

The first references to concrete date back to 200 BC. Its original use was mainly as a material for permanently bonding stones together. Although its composition differed significantly from what we know today, since it was originally a mixture of sand and small stones with lime mortar, its properties were similar to the material used today.

Once the stage of using concrete solely as an adhesive mortar had passed, larger structures began to be made with it, such as foundations and the first prefabricated building elements. Concrete itself became a substitute for stone.

Today this material is still doing very well. Entire buildings are constructed with it, and it is used wherever it possibly can be.

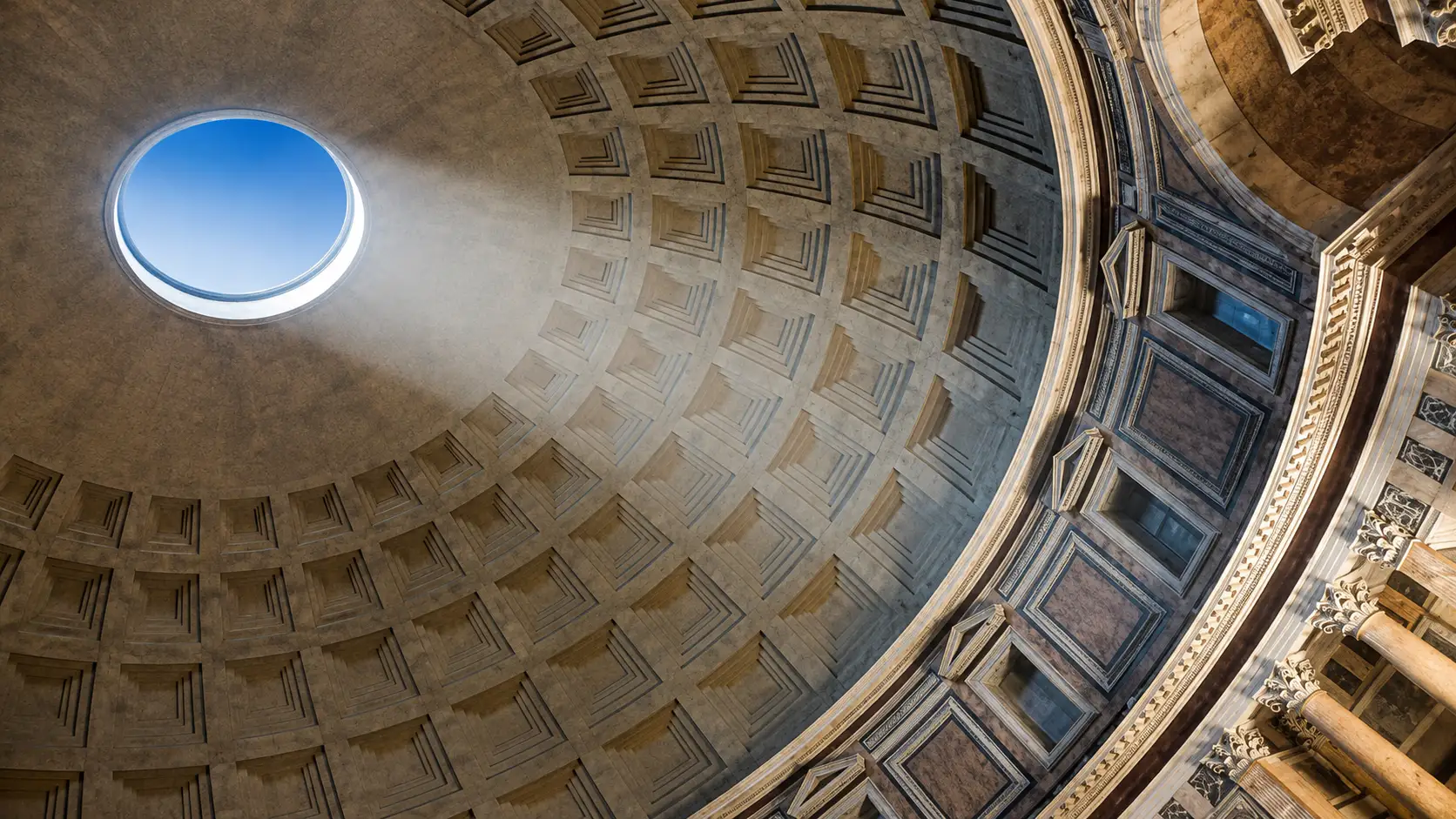

Pantheon

The dome of the Pantheon in Rome

Many monuments of ancient Rome throughout the Mediterranean basin were made of concrete. Some of them have survived to this day. The finest example is the cast-concrete dome of the Pantheon, 43.3 m in diameter, weighing about 5,000 tons and built between 118 and 125 AD. Other examples include the Baths of Caracalla, bridges and aqueducts.

https://pl.wikipedia.org/wiki/Beton

Perhaps one of the most basic elements made of concrete is flooring, including driveways and sidewalks. Concrete performs excellently in these applications. Its properties, such as longevity, abrasion resistance and a relatively simple execution technique, mean that it is still the most frequently chosen material in construction.

Something as commonly used as concrete, and with such a long history, made people grow accustomed to the material and, broadly speaking, it became ordinary.Here we move in time and space to the United States, to the end of the 19th century. It was then that the first documented attempts began to give concrete products a different character and a breath of freshness. Pigments and acids were tested, added directly to the mix to create new and interesting effects and to demystify the familiar gray concrete. In fact, the turn of the century, from 1890 to 1920, produced the greatest number of more and less successful attempts to find new ways of working with this material.

Everyone who tried to promote their own method of texturing or coloring concrete realized that the stakes were high. Material producers, tool manufacturers and contracting companies all played a part in the development of this increasingly popular sector.

New opportunities opened up, and almost everyone in the market wanted their piece of the pie. As history later proved, the value of the stamped concrete market in the United States alone had grown to USD 9.4 billion by 2018.

As the history of this branch of construction was being built, many innovators introduced new solutions. Some achieved spectacular success, while others have already been forgotten. It is certainly worth writing about four of them, because they helped popularize the technique of making textured concrete and made working with concrete itself easier. This led to the spread of the method and an increase in the number of subcontractors. And that set in motion a machine that still runs today, at ever increasing speed.

The first of them was Lynn Scofield. This early-20th-century entrepreneur decided to bring together everything that was then known about pigments. In principle, the most important factor was color resistance to UV radiation.

It was already known that metal oxides remain stable under constant exposure to sunlight and that colors do not fade over time. A major problem was the lack of any manufacturer offering a ready-to-use product that would deliver predictable results every time.

In those days, every contractor used their own methods. Some were better, some worse, but no one could guarantee that the final color would be exactly what the investor wanted.

In 1915, Scofield founded a company called LM Scofield Company, which still exists today and is owned by the international Sika group. He began producing ready-made concrete pigments, colored surface hardeners - a mixture of pigments with cement and fine aggregate rubbed into the top layer of freshly poured concrete. He also produced waxes, impregnations and acid stains.

It was a perfect hit. Scofield filled a certain void and was the first manufacturer on the market with such a comprehensive offer. One of the well-known clients who used his materials was Charlie Chaplin himself, along with many other famous figures.

Lynn Scofield

Founder of LM Scofield Company, a manufacturer of concrete pigments.

Bradshaw Bowman

Founder of Bomanite.

The second great innovator in this field was Brad Bowman, founder of Bomanite, who revolutionized the way decorative concrete is made.

He started as one of many decorative concrete contractors. In his time, the right tools did not yet exist. Everyone worked with what was generally available and with tools they made by hand.

He tried many techniques that gave concrete surfaces a pattern. He even used wooden boards placed perpendicular to the concrete surface, intended to outline the shape of paving stones. In this way, he pressed a paving pattern into fresh concrete.

He also built a kind of stamp made of several wooden boards, with which he could imprint a pattern over a larger area in one pass.

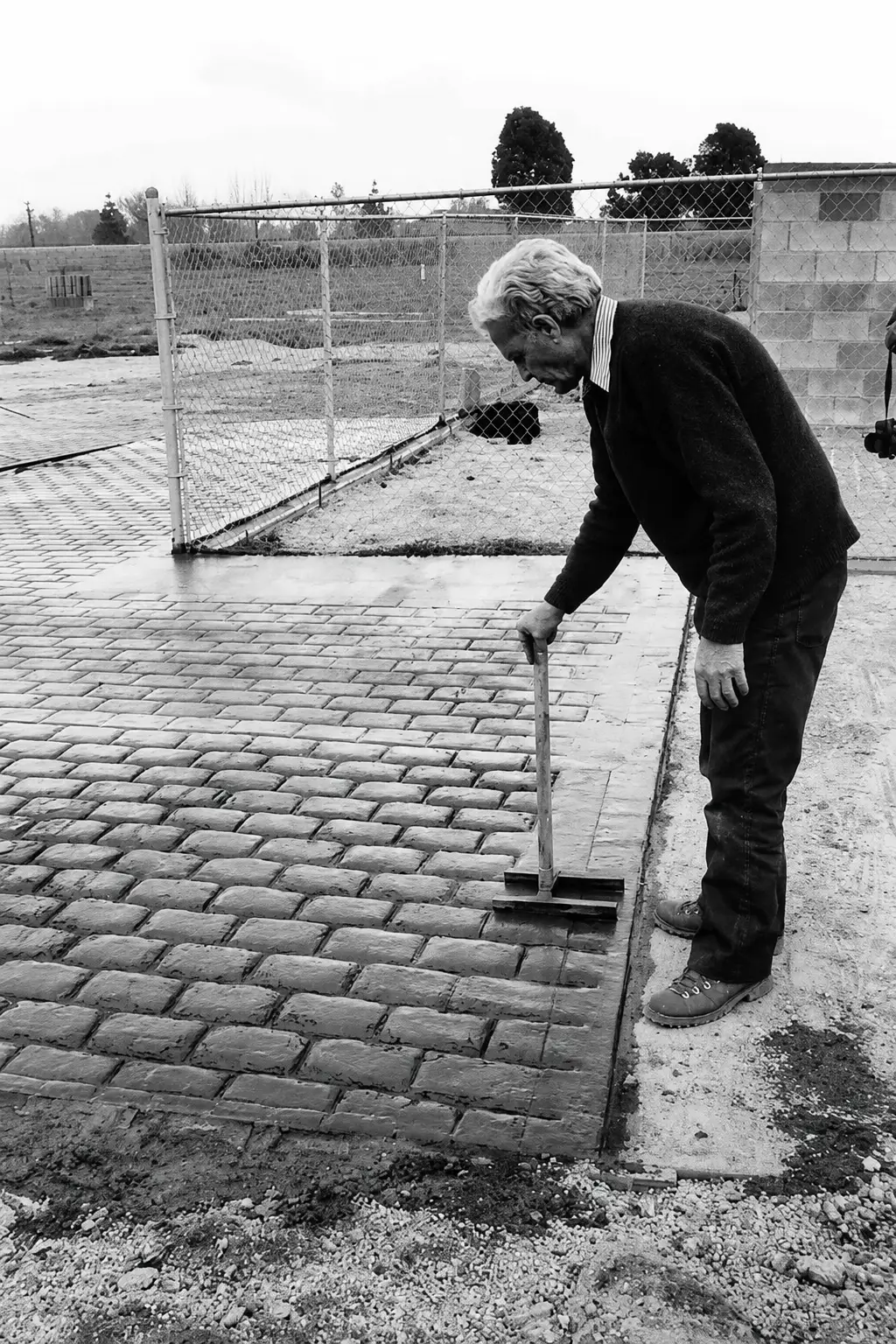

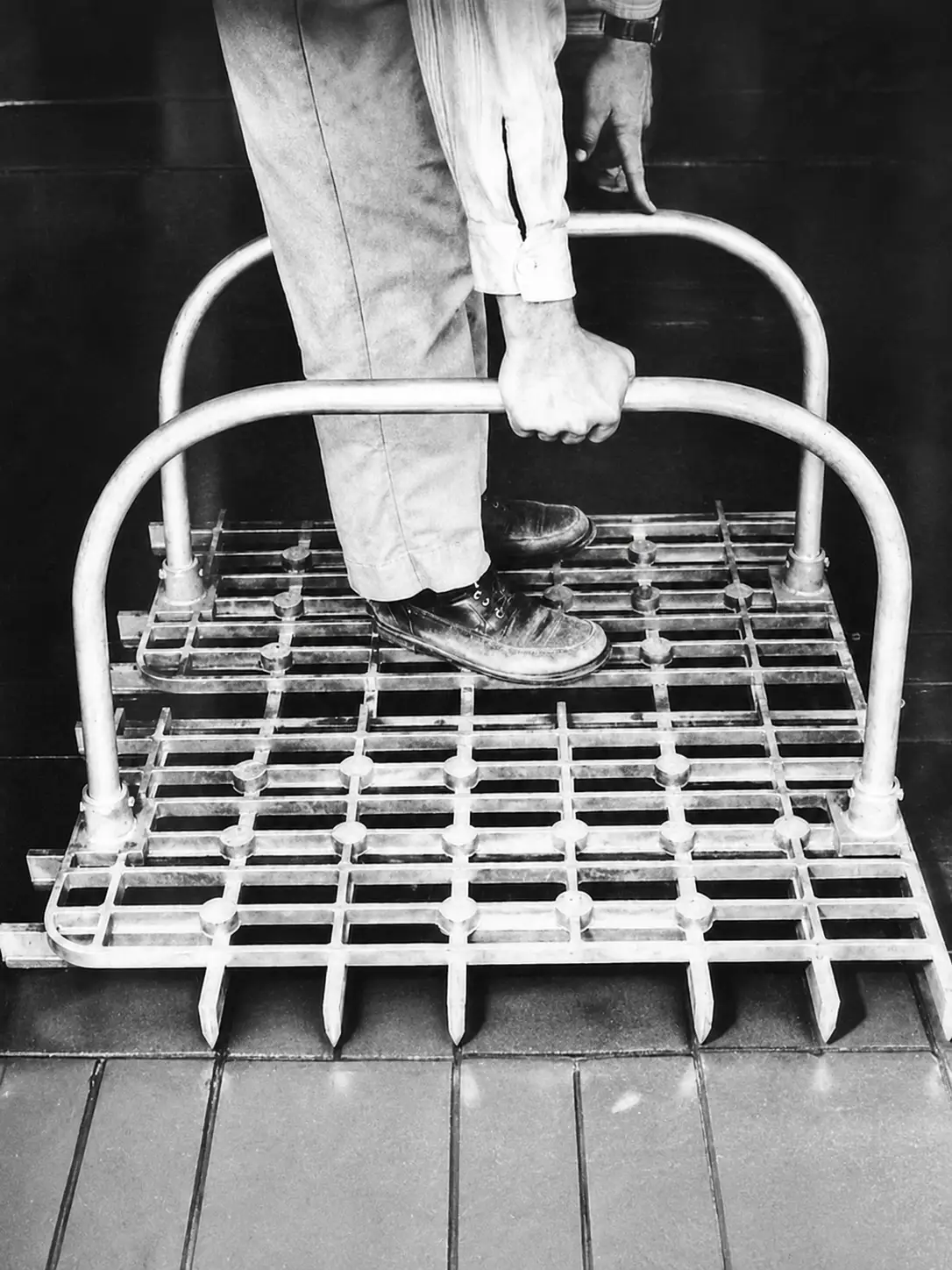

An early version of a form for imprinting paving-stone patterns. A hand tool for texturing a paving-stone pattern in concrete These were not particularly efficient methods by today's standards, but this is how stamped concrete was made in the years 1950-1970. Naturally, his tools evolved and he stopped using wooden elements in favor of steel and then aluminum castings.

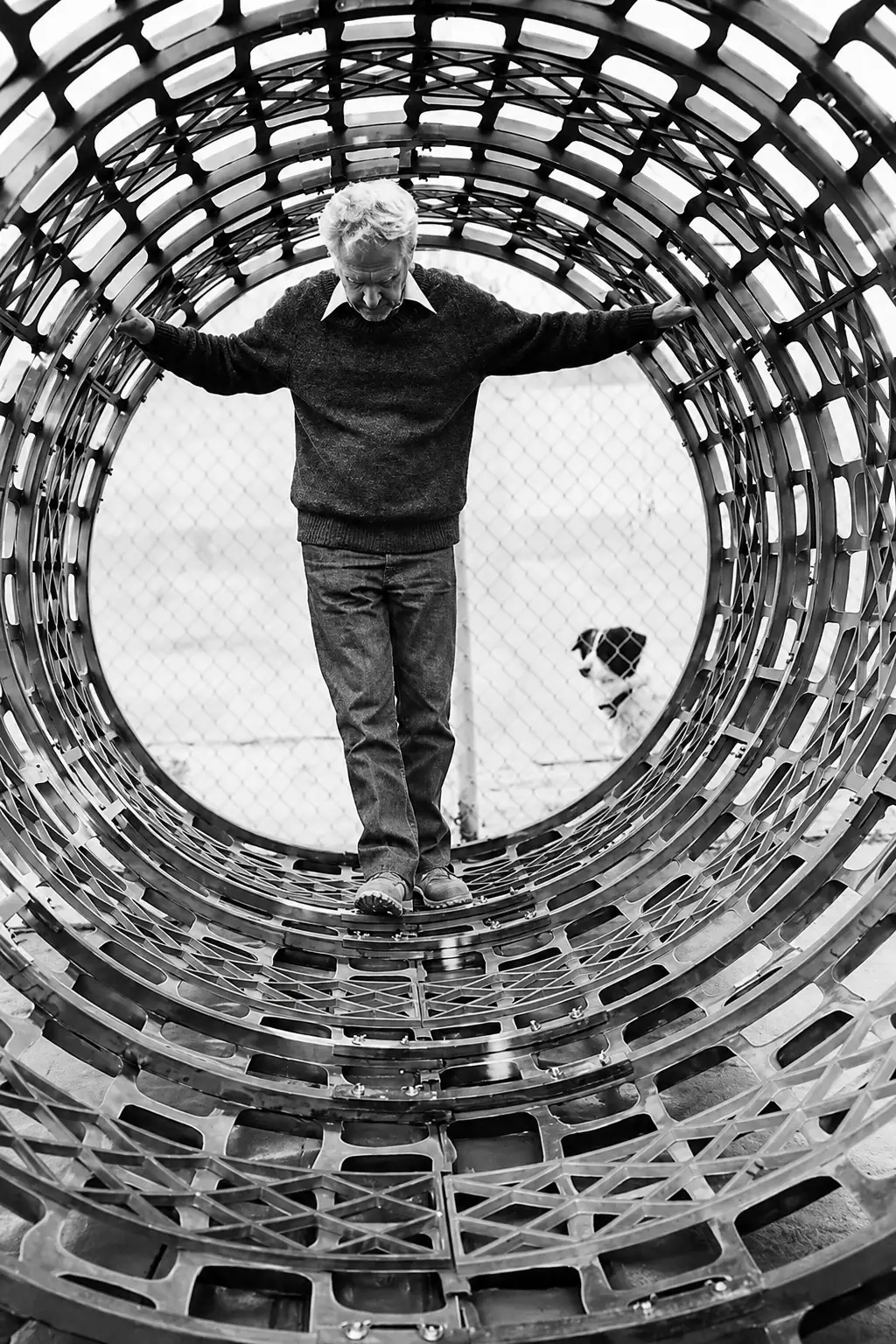

Almost every contracting company at the time used his concrete texturing tools. It has to be admitted that some of his tools made an impressive impression. The most interesting form by far was a large cylinder rolled over fresh concrete to give it a paving-stone pattern.

However, the technique of making decorative concrete still needed refinement. The biggest problem installers encountered was giving texture to the concrete surface.

This material tends to stick to every surface. To create, for example, a stone pattern, the most sensible method was to use a form or a real stone to press its texture. The problem was that every time the stamp was removed, it pulled some concrete from the surface as well. This created unattractive pits and damage, which was unacceptable.

This problem was solved by chance in 1956. Bill Stegmeier, who ran Stegmeier Co., a company producing prefabricated elements for pool construction, was looking for a way to solve a certain pressing problem.

The slabs he produced for pool edges heated up in the sun to high temperatures and burned bare feet. He experimented with mixing pigments with a fine powder that coated his products. The result of those experiments changed the face of the industry forever.

It turned out that this mixture gave products a patina and made them look like natural stone. What is more, the powder he obtained formed a release layer between the concrete and the form, which no longer stuck to the fresh concrete. Stegmeier invented a powdered concrete release agent that contractors still use today.

Following this success, he also began producing rubber molds, which became a convenient tool for transferring the texture of wood and stone onto concrete.

Bill Stegmeier

Founder of Stegmeier Corporation.

Contracting companies eagerly used both texture molds and steel stamps that cut a stone pattern into concrete.This was before the invention of polyurethane molds. Rubber molds did not cut the pattern into the concrete; they only gave it texture. Steel forms, on the other hand, cut only the pattern and did not add texture. Their service life was also short. For this reason, the process of working with concrete was still complicated.

Joe Nasvik

He produced the first polyurethane concrete mold that imprinted both texture and pattern.

The situation changed when Jon Nasvik produced the first polyurethane mold.

This type of mold allowed both the pattern and the texture to be imprinted accurately in fresh concrete, and the material from which the molds were made gave them long service life.

These four innovators laid the foundations for the decorative concrete industry as we know it today.

However, it should be remembered that many others also contributed to the development of this construction sector. The history of decorative concrete is much broader, and I have presented only its main outline.

It should also be said that progress did not stop in the 1970s. We are still seeing improvements and new methods of working with concrete, which I will try to describe on this blog.
